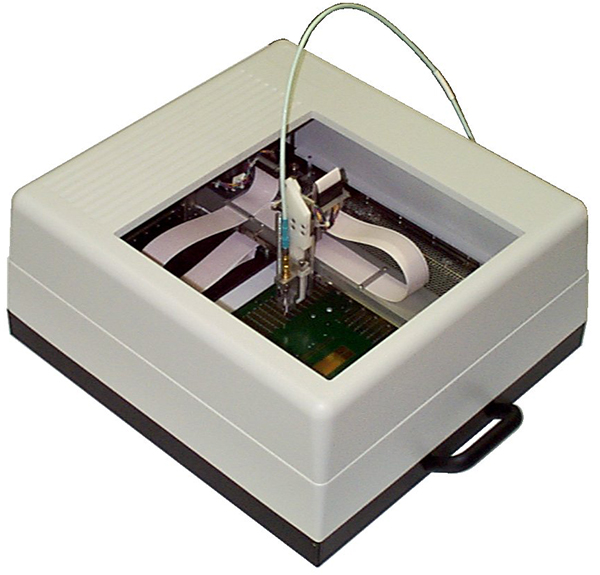

ATE Calibration Robot - Cartesian Format

As ATE pin counts increase and timing requirements become more stringent, Validation and Focused Calibration are best performed by a Calibration Robot.

The Calibration Robot is used in conjunction with an oscilloscope, TDR or TDM instrument to validate tester signal performance or to perform a calibration at the test head. Commanded by the tester the robot automatically moves the probe tip to the desired DIB pad locations. The measured signal always travels though the same cable path to maximize signal repeatability. Stepper motors and a custom drive keep the system electrically quiet while recording measurements.

Robots are customized to interface with specific ATE models. Customization enables us to accommodate the different communication and mechanical interface requirements of the testers. A variety of probe types are supported.

  • Resolution: 0.0015" X and Y , 0.008" Z
  • Accuracy: ± 0.012" X and Y , ± 0.016" Z
  • Probe Area: 12" x 12"
  • Probe type: 50 ohm coaxial (customizable)
  • Weight: 22 lbs
  • Communications: Serial
